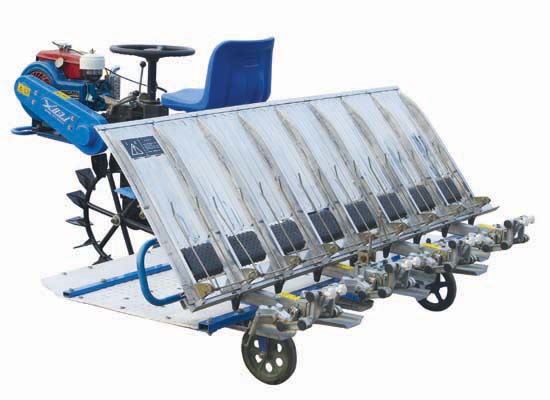

| XL2Z-6Ride-on Rice Planter |
| Dimension(mm) |
2510×2132×1230 |
| Mainframe Weight(kg) |
290 |
| Power |
Air Cooling Diesel Engine(170F) |
| Mould of carriage |
Drive with alone wheel |
| Planting formation mould |
Each alone link of crank |
| Planting row number |
6 |
| Row spacing (cm) |
30 |
| Planting spacing (cm) |
12 / 14,14 / 17,16 / 20 |
| Planting frequency (f) |
3.7(2600r / min) |
| Planting depth (mm) |
0-45Stepless-adjust |
| Planting speed (m / s) |
0.35-0.58 |
| Planting efficiency (h㎡ / h) |
0.13-0.2 |
| Running speed on road (km / h) |
7.8-10.7 |
| Asunder needle entry max depth (mm) |
17 |
| Landscape orientation |
18 |
| Walking wheel of rubber dimension (mm) |
680 |
| Wheel of blade dimension (mm) |
705 |
| Walking wheel max turning (mm) |
60° |
|
